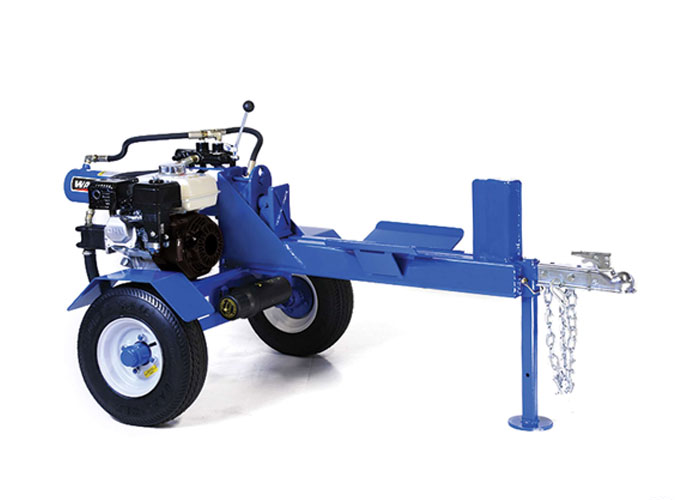

WX520
Horizontal Towable/Self-Contained
- Direct Pressure
- Hands Free Return - Auto Neutral
- Two Stage Hydraulic Pump
- Wide Wedge
Specifcations
Split Force
20 Ton
Engine
Vanguard® 6.5 hp (203 cc)
Split Opening
24" (61 cm)
Orientation
Horizontal
Average Splitter Cycle Time
6.62 Seconds
Full Cycle
13.24 Seconds
Cylinder Diameter
4" (10 cm)
Wedge Height
9" (23 cm)
Bed Height
19" (48 cm)
Tires
4.80 x 8
Hitch
2" Ball
Tongue Weight
40 lbs
Total Weight
365 lbs (166 kg)
Dimensions (LxWxH)
72" x 42" x 36" (183 cm x 107 cm x 91 cm)
Hydraulic Capacity
3 US gal (11 l)
