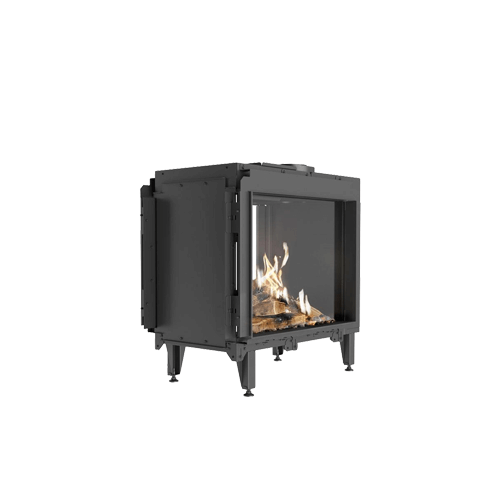

RAIS VISIO 70 T

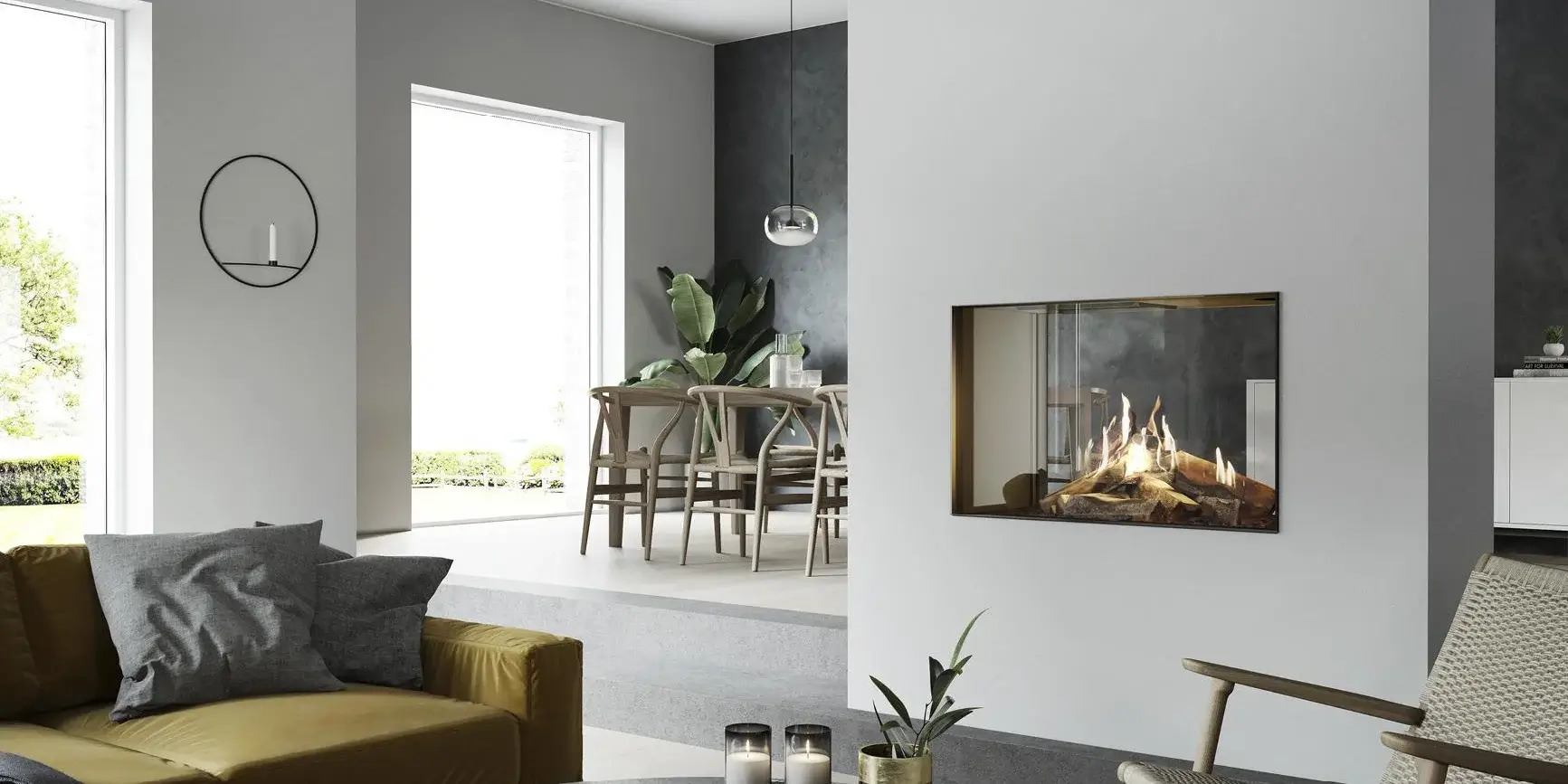

RAIS Visio 70 T is, with a glass width of 65 cm, the smallest of the tunnel models. This model can be placed between two rooms, so you can see through the flames from one room to another. A simple and discreet frame accentuates the flames. Just press the remote control, and in minutes your home is wonderfully warm.
The frame comes in black or stainless steel.
Connects to natural gas, city gas, LPG or biogas.

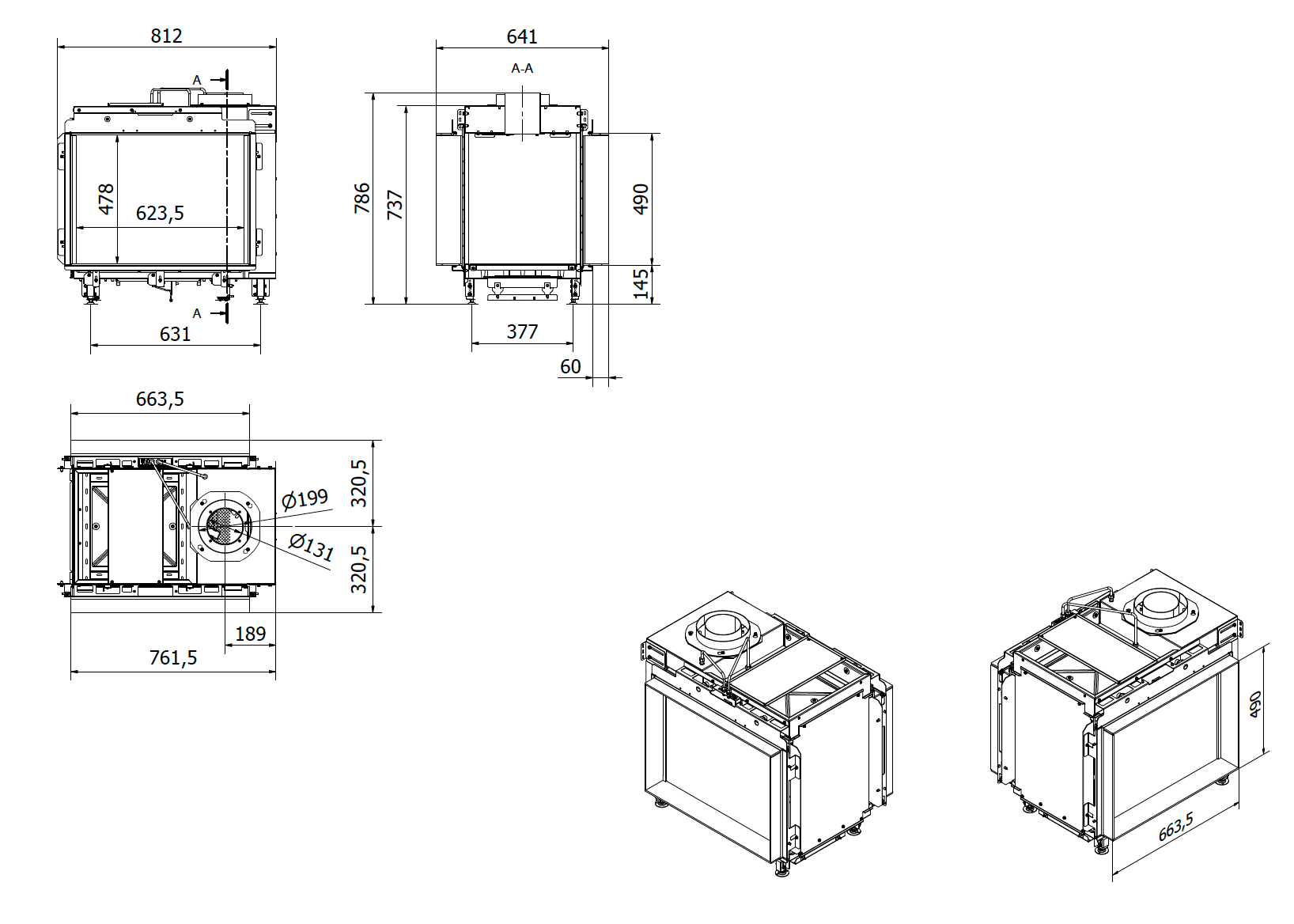

TECHNICAL DATA
| External dimensions (W-D-H) in mm: | 812 x 641 x 786 |
| Outer frame dimensions in mm: | 663,5 x 490 |
| Flue outlet (diameter): | Ø130 / Ø200 |
| Weight in kg | 120 |
| Output | |
| Natural gas - G20 (kW) | 6,5 |
| LPG - G30/G31 (kW) | 9,4 / 7,9 |
| Effciency | |
| Natural gas - G20 (%) | 89,8 |
| LPG - G30/G31 (%) | 90,5 |
| Distance to flammable material | |
| To the ceiling in mm | 1000 |
| To the floor in mm | 300 |
| Distance from flammable materials to glass in mm | 500 |
