RAIS VISIO 2

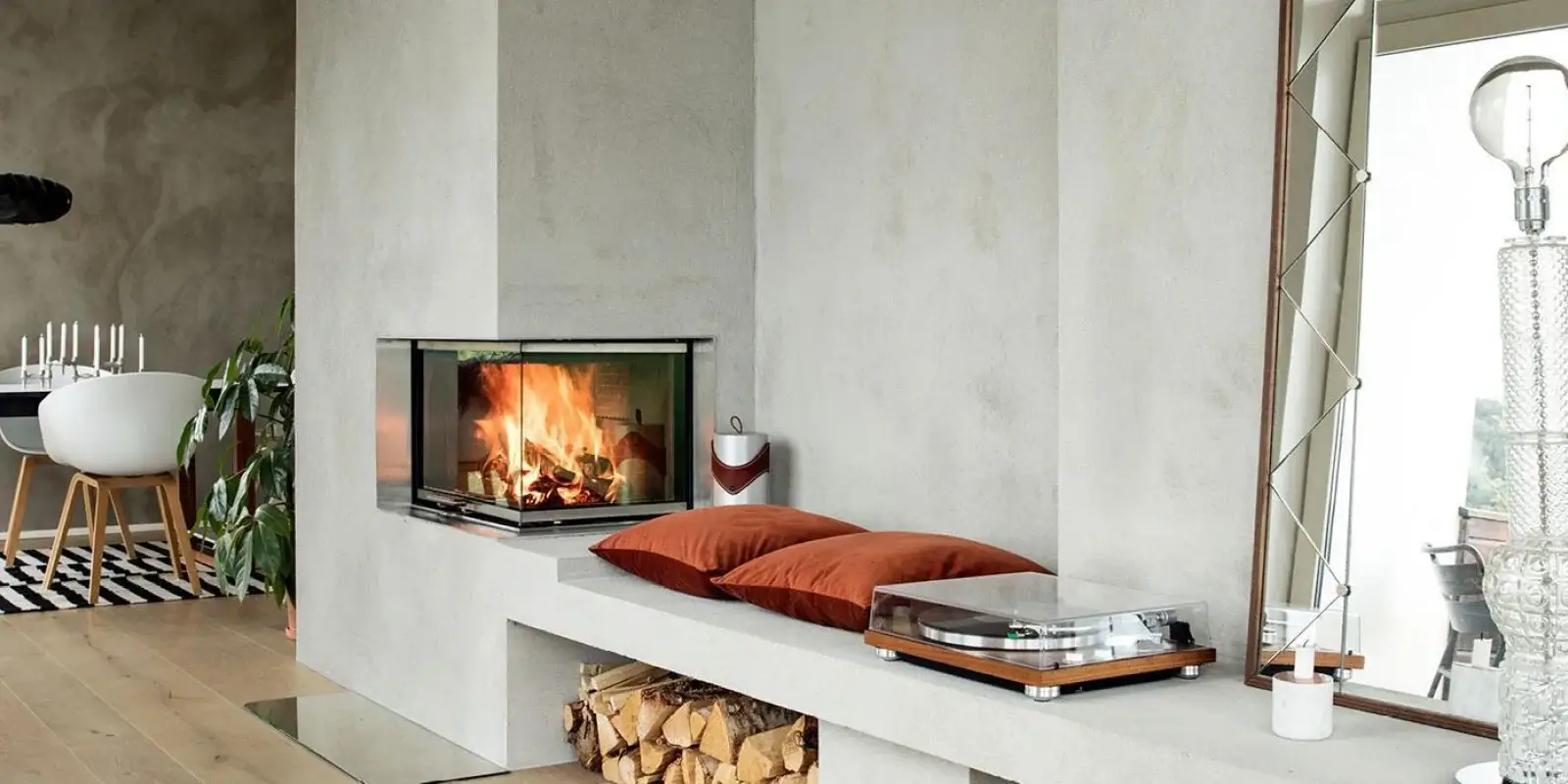

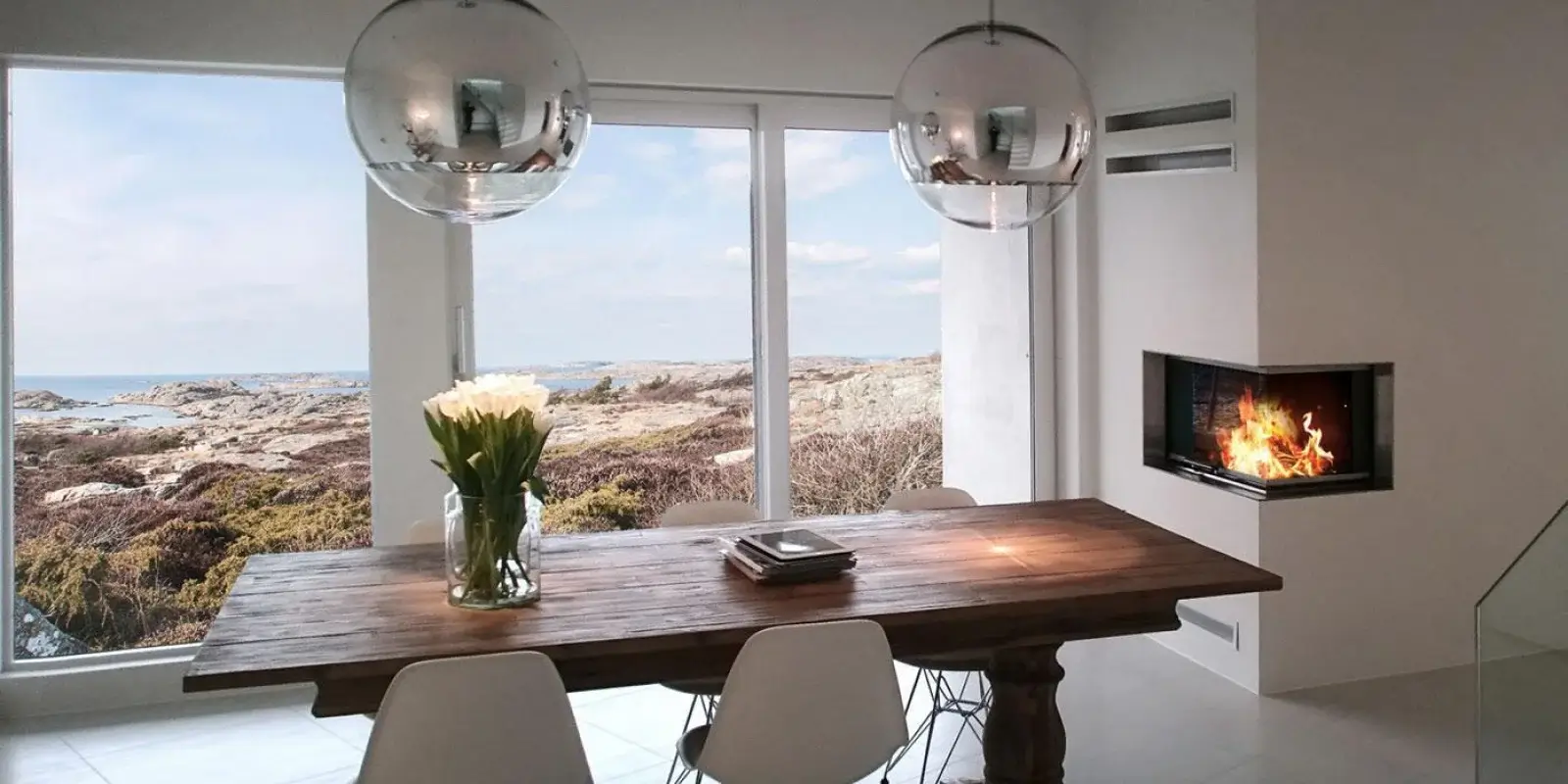

With an all-glass two-sided glass door, the corner inset Visio 2 offers numerous fine design possibilities. You can install it centrally or place it in a corner. Visio adds exclusiveness to your home. The sublime design, the strong element of fire. When you open the pane, it is pushed upwards. Smart and convenient. Note the high efficiency of 80%.
TECHNICAL DATA
| Installation dimensions (W-D-H) in mm | 685 - 490 - 432 |
| Outer frame dimensions (W-D-H) in mm | 751 - 557 - 444 |
| Distance to flammable material | |
| To side wall in mm | 300 mm |
| To back wall in mm | 75 mm |
| To the ceiling in mm | 1285 mm |
| To the floor in mm | 385 mm |
| To furniture | 1200 mm |
| Additional heat accumulation stones | 84 |
| Glass door with black edge | Standard |
| Glass door with rustproof edge | Accessory |
| Cover frame, black | Accessory |
| Cover frame, rustproof | Accessory |
Advanced Glass Concept
All RAIS stoves come with glass that is based on our ADVANCED GLASS CONCEPT®, which uses different types of glass that can vary from stove to stove, but which all serve the same purpose: to create the best conditions for soot-free glass and a gorgeous view of the fire.
