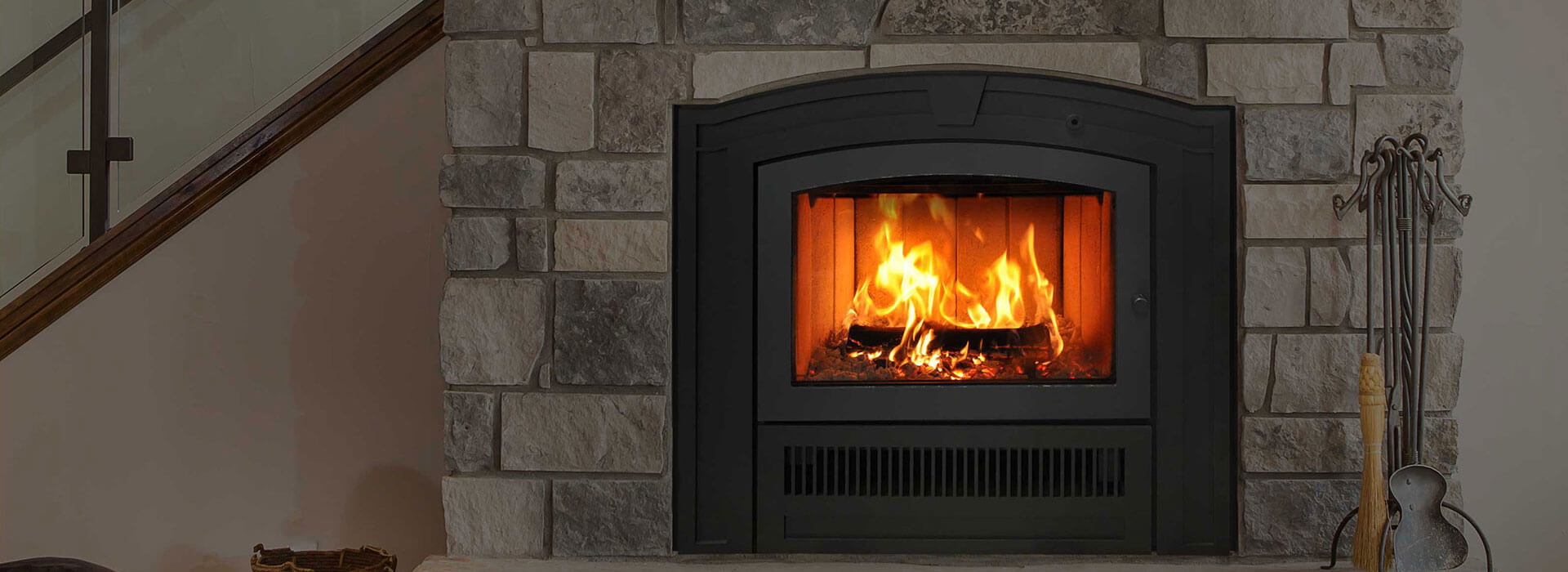

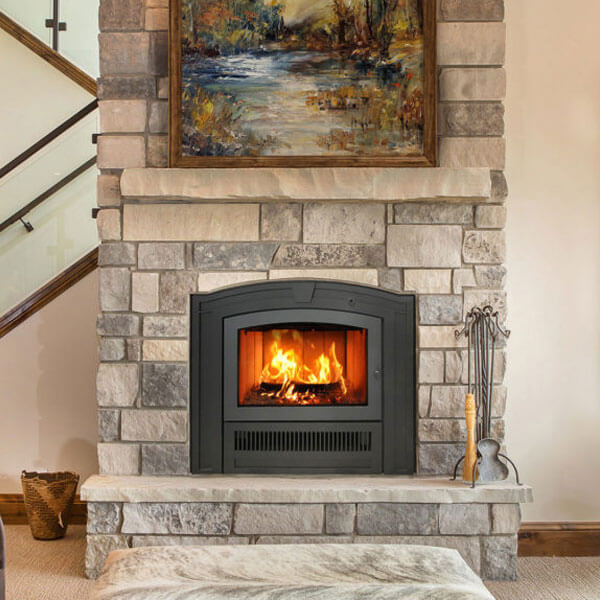

OPEL PLUS KEYSTONE
ONE FIREPLACE, TWO LOOKS.
As part of the growing Opel family, the Keystone is the result of fine craftsmanship, inspired by versatility and built on more than 30 years’ of proven performance with high efficiency wood–burning fireplaces.

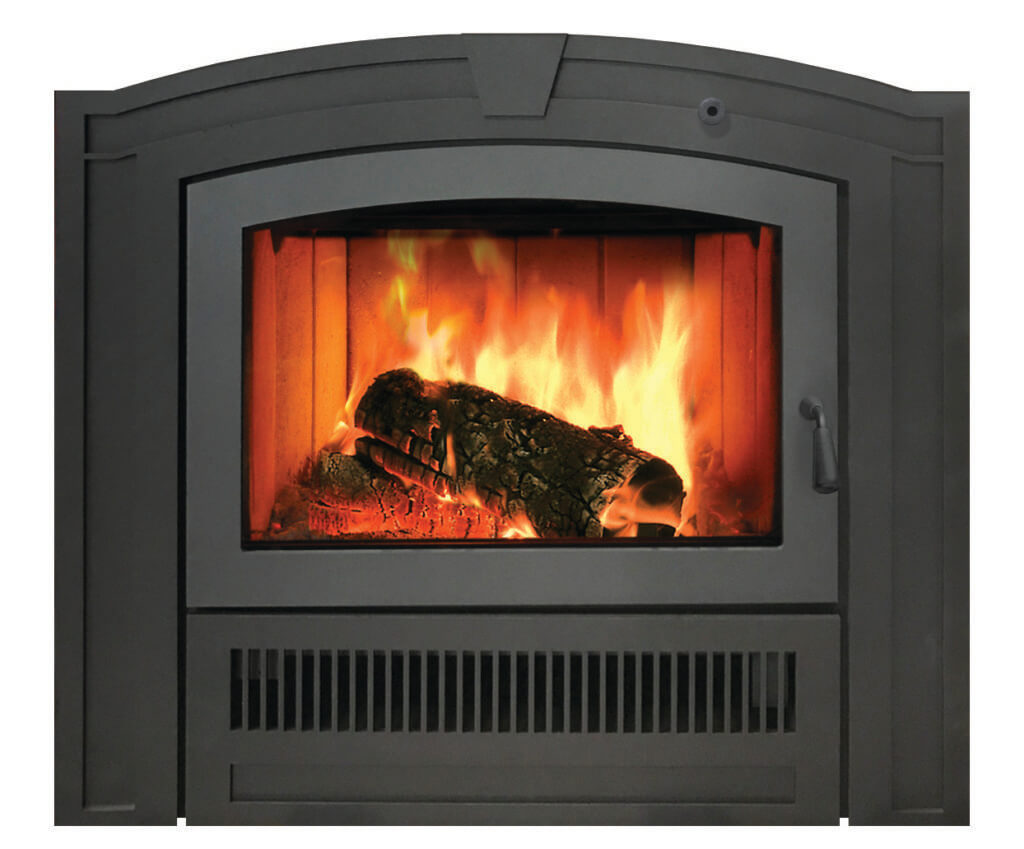

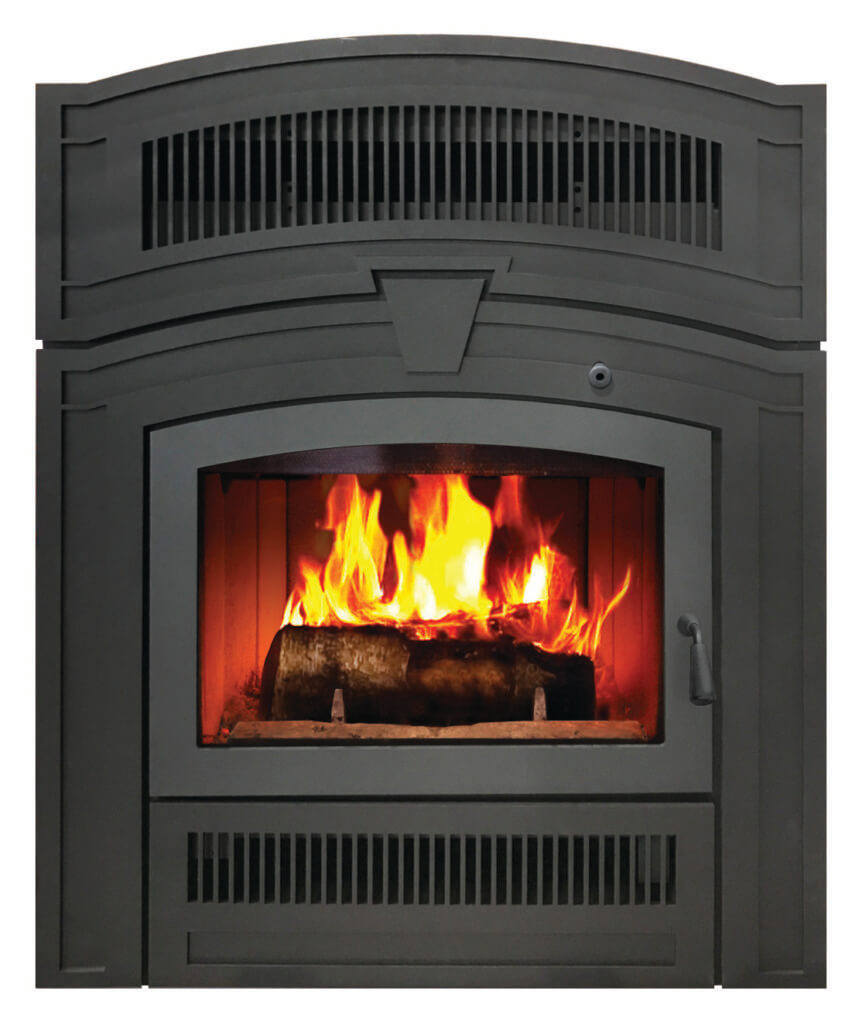

The Keystone name comes from the interchangeable keystone facing that is offered either as a semi-clean look or as a full faceplate, adding modern sophistication and design choices to any mid-sized space.
Performance
Outside Dimensions
36 7/8″ W X 52 1/4″ H X 24″ D
Shipping weight
605 lb
Glass Viewing Area
325 in2
22 ½” W x 13 ⅝” H + arch
Firebox Size
The observable firebox volume is 3.6 cubic feet
EPA official usable firebox volume per certification testing is 2.3 cubic feet.
Firewood Length
EPA tested with 15.75″ logs; can accept up to 18″ logs
Chimney
7″ Excel
Door Finish
Black
Outside Air
4″
All RSF models come equipped to accept a 4″ outside air duct, a 5″ can also be used. All models can also be installed to operate using room air.
Mobile Home Approved
NO
BTU Output
27,034 BTU/h
Based on EPA certification testing using crib wood and calculations from CSA B415.1-10.
Estimated BTU Potential
70,000 BTU/h
Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of installation, etc.
Heating Capacity
1,500 to 3,000 ft2
Depends primarily on wood quality, ambient air temperature and building heat loss.
EPA Certification
0.7 g/hr
Optimal Efficiency
80%
Low Heating Value (LHV) CSA B415.1-10 calculations.
EPA Average Efficiency
70%
High Heating Value (HHV) CSA B415.1-10 calculations.
EPA Average CPO
0.58 g/min
Carbon Monoxide (CO), using data from EPA crib wood testing
